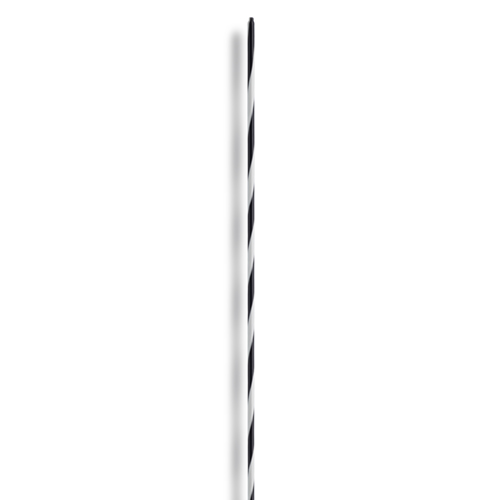

STRIPE LINE GUIDEWIRE

  • Wide range of applications for urological and gastroenterological procedures
  • Exceptional kink resistance thanks to the nitinol core wire
  • Controlled advancement thanks to application-specific features
  • Optimal visibility of movement patterns due to contrasting, dual-colour PTFE coating
  • Excellent radiopacity provided by distal tungsten or platinum tip

High smoothness with/while maintaining full stability.

Technical Details

  • Tip shape: Straight or angled tip
  • Standard length: 150–450 cm
  • Standard diameter: 0.028“–0.035”
  • Core wire: Nitinol
  • Coating: Two-tone PTFE tubing (color selection according to customer preference)
  • Packaging: Also available in a dispenser and sterile
  • Approval: With EPflex approval upon request (depending on length and application)
Article NumberDescriptionTipDiameterLength
SLS28150STRIPE LINEstraight0.28″150
SLB28150STRIPE LINEangled0.28″150
SLS28450STRIPE LINEstraight0.28″450
SLB28450STRIPE LINEangled0.28″450
SLS35150STRIPE LINEstraight0.35″150
SLB35150STRIPE LINEangled0.35″150
SLS35450STRIPE LINEstraight0.35″450
SLB35450STRIPE LINEangled0.35″450

Intended USe

Urology

Gastroenterology

Custom Shape

We specialize in customized solutions and develop products tailored to our customers’ needs.

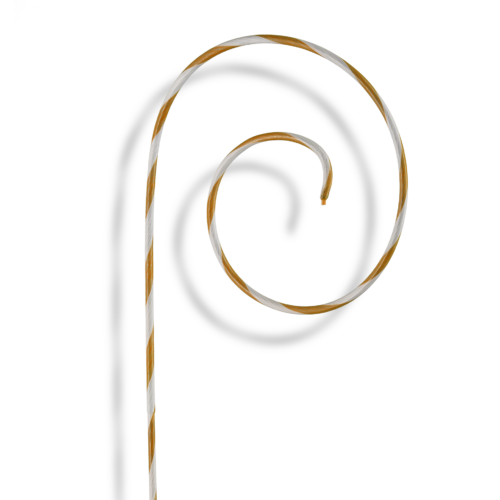

  • Individual shapes available, such as pigtails
  • Custom lengths, diameters, and geometries
  • Bespoke custom solutions/custom-engineered specialized products
  • Variants for other applications, such as cardiovascular interventions
